FixFlex™ Wrap Fasteners

Fast Wrap Installation Fasteners

The FixFlex Wrap system is designed as a fast wrap installation system to quickly and securely fix insulation wrap to both steel frame and timber frames. The FixFlex Battery Nailer is powered by the latest battery technology, with no need for gas canisters it offers premium reliability and safety.

Product Advantages

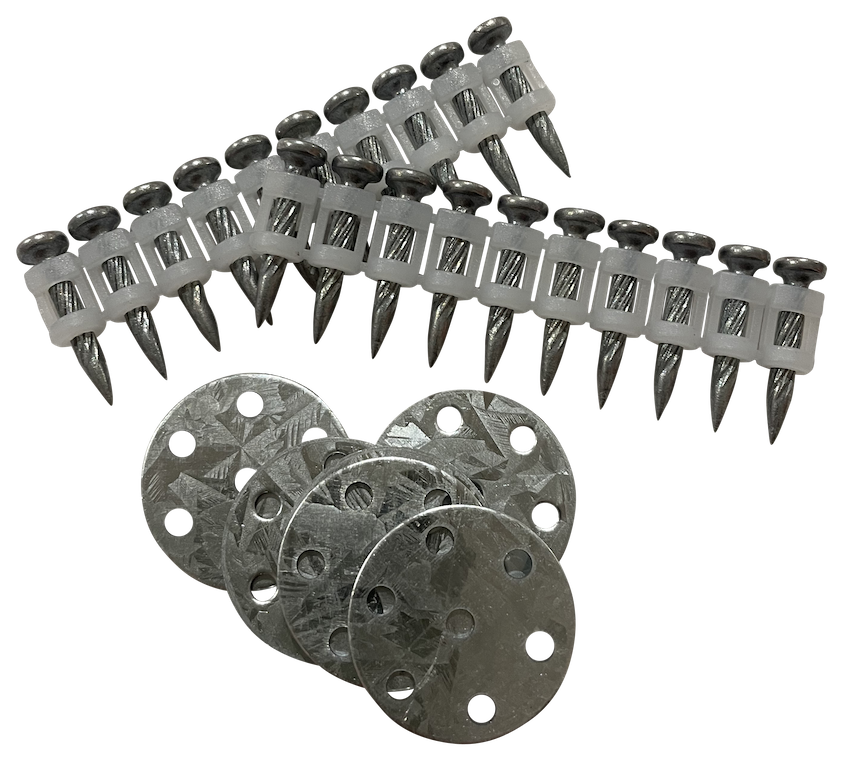

  • Adjustable nail depth via screw on barrels
  • Specialised magnetic adaptor
  • Threaded nail designed specifically for steel frame
  • 1mm thin galvanised washer

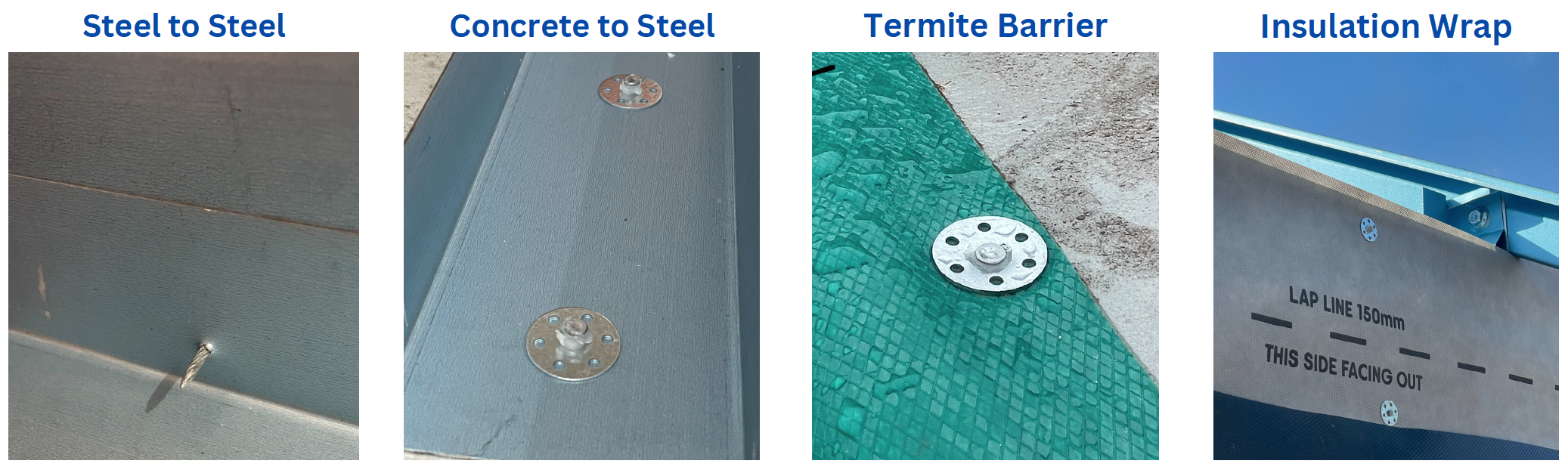

Applications

  • For installing wall wrap onto timber and steel frame construction systems
  • Termite barrier to concrete slab
  • Steel frame to concrete slab
  • Steel to steel
    • Blank one so all stay closed
    Product Details
    Base Material: Carbon Steel
    Hardness: 50-55 HRc
    Length: 22mm
    Head Diameter: 6.2mm
    Shank Diameter: 2.9mm
    Finish: Mechanical Zinc to 10um+
    Product Testing
    Concrete Testing
    25mpa Working Loads
    Pull Out Strength 2.0kn
    Shear Strength 3.0kn

    Steel to Steel
    0.75 to 0.75bmt working loads
    1 Nail Shear Strength 2.8kn
    2 Nail Shear Strength 3.6kn
