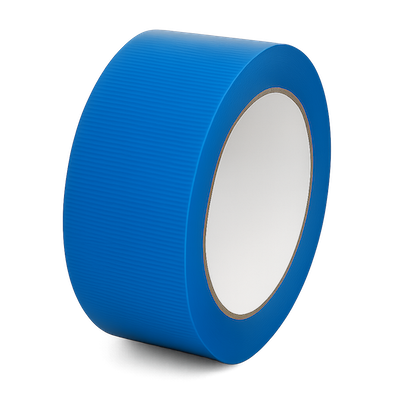

VapourFlex® Joining Tape
Vapour Permeable Wall Wrap Joining Tape
VapourFlex® Joining Tape is a Resin Cloth coated with a high tack permanent acrylic adhesive
system. This joining tape is suitable to seal and join, or repair, the Reflex Insulation VapourFlex®
vapour permeable product range. VapourFlex® Joining Tape uses premium acrylic adhesive to
provide a durable and superior joining adhesion to building membranes.
Product Advantages
-
High Performance & repositionable
-
Installed without the use of knives, scissors or razors
-
Excellent UV Stability, adhesive ageing characteristics & good adhesion to self
-
Water & Vapour Tight
Applications
Permanent sealing of Vapour Permeable Water Resistant Barriers.
Sealing of building penetrations – primarily doors, windows and ventilation points.
Blank one so all stay closed
Product Details
| Product Name | VapourFlex® Joining Tape |
| Roll Size | 48 mm x 50 m; 72 mm x 50 m |
Product Testing
| Gauge | 0.20mm |
| Tensile Strength | 75 N/cm |
| Peel Adhesion Stainless Steel | 15.4 N/cm |
| Water Penetration Resistance / Initial | No Leakage (ASTM D1970) |
| Water Penetration Resistance / After Thermal Cycling | No Leakage (ASTM D1970) |
| Resistance to Peeling from Self | Pass (AAMA 711-20) |
| UV Resistance (2,000 Hours UV Light) | No change |
| Service Temperature | -30ºC to 80ºC |
| Application Temperature | 5ºC to 40ºC |
Installation Instructions

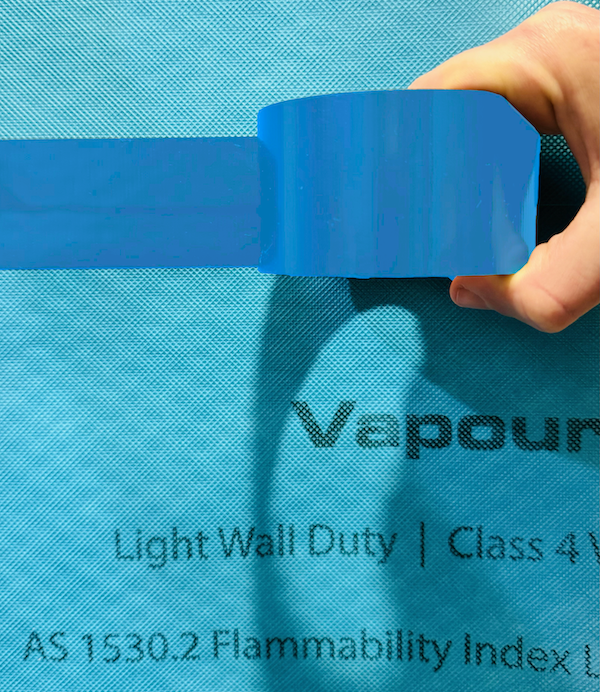

TAPE APPLICATION
-
The surface on which the tape is to be used must be clean, dry and free from grease and dust. Pressure sensitive adhesive must be applied with the maximum possible pressure in order to achieve maximum adhesion levels. The recommended application temperature is between 15ºC and 30ºC.
Store tape in a clean, dry place out of direct sunlight.
Tapes stored below the minimum application temperature will require warming up to that level before use. Up to 24 hours may be required for this to take place.
